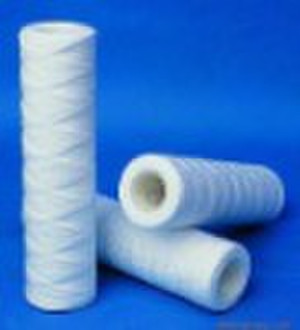

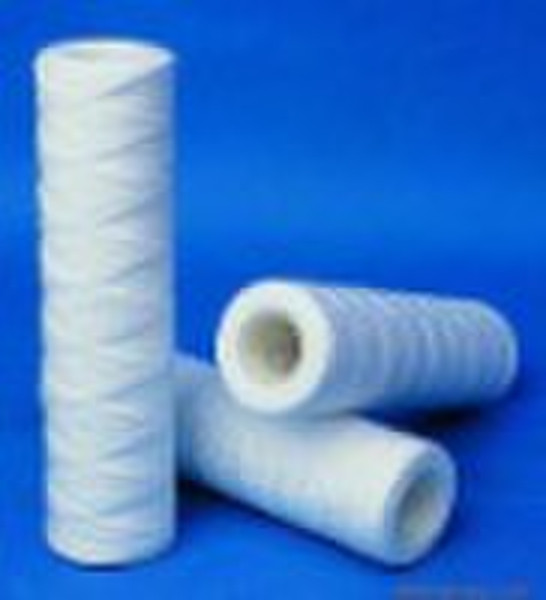

wire wound filter cartridge

This filter element is one kind in-deepth filter element.It is used in the low viscosity,the low impurity quality filtering .is with the textile fiber line (polypropylene fiber line ,degreasing cotton thread and so on.) twines precisely outside according to the specific craft at the porous skeleton(polypropylene orstainless steel)made above,has the sparse in dense honeycomb structure.This structure can effectively remove sundary goods, particulates,rust and other debris,has a very good characteristic.Widely used in water ,drink ,industrial water ,domestic water,plating solution,chemical liquid and so on. Main technical indexes as follows Filtration precision :1μm. 5μm. 10μm. 20μm. 30μm. 50μm. 75μm. 100μm.Filter element core outer diameter :Φ60mm. Φ65mm. innerdiameter :Φ28mm. Φ30mm.Length:10". 20". 30". 40" The highest compression :≤0.5Mpa Max pressure drop :0.2Mpa
